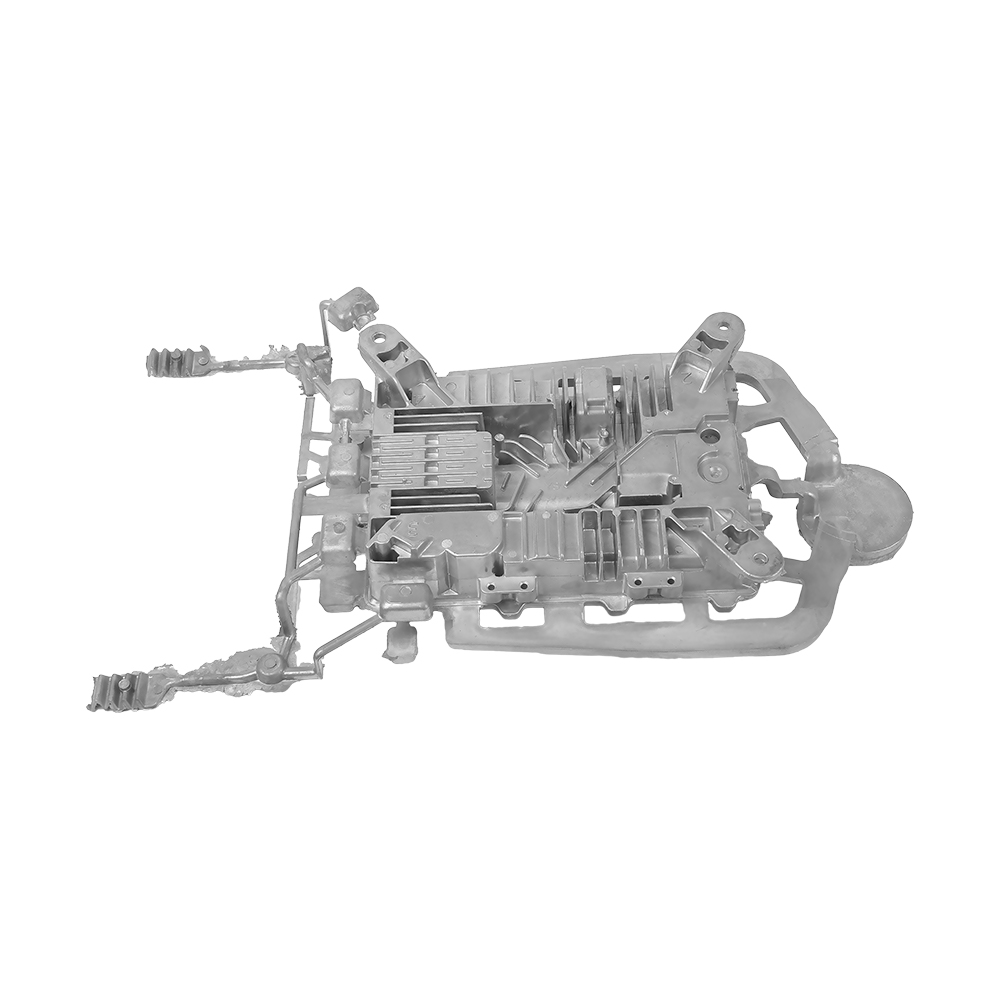

Aluminum Die Casting Gearbox Body

Will the aluminum die-cast gearbox body produce resonance at high speed?
Aluminum die casting gearbox body may experience resonance during high-speed operation, but the specific occurrence and severity of resonance will be affected by various factors. The following is a detailed analysis of this issue:
1、 The conditions for resonance to occur
Natural frequency: Every object has its natural vibration frequency, and when the frequency of external excitation is close to or equal to the natural frequency of the object, the object will resonate.
External excitation: During high-speed operation, the gearbox is subjected to vibrations and impacts from components such as the engine and transmission shaft, which can be considered as external excitation.
2、 Characteristics of aluminum die casting gearbox body
Material characteristics: Aluminum alloy material has low density, high specific strength, and good thermal conductivity, which reduces the weight of aluminum die casting gearbox body, but still meets the requirements in terms of strength and stiffness. However, the stiffness and damping characteristics of the material can also affect its resonance characteristics.
Manufacturing process: Die casting technology can ensure that the gearbox has high dimensional accuracy and internal density, reducing internal defects. However, small differences in the manufacturing process may also affect the resonance frequency of the gearbox.
3、 The possibility and influencing factors of resonance generation
Design factors: The design of the gearbox, including its structural layout, material selection, connection methods, etc., will affect its natural frequency and response to external stimuli. If not designed properly, it may cause resonance in the gearbox during high-speed operation.
Manufacturing factors: Process control and material quality during the manufacturing process can also affect the resonance characteristics of the gearbox. For example, small errors in the manufacturing process may cause the natural frequency of the gearbox to shift, thereby increasing the risk of resonance.
Usage factors: The load situation, working environment (such as temperature, humidity, etc.), and maintenance status of the gearbox during use can also affect its resonance characteristics. For example, prolonged high load operation or lack of maintenance may lead to a decrease in gearbox performance, thereby increasing the risk of resonance.
4、 Preventive measures
Optimization design: In the design phase of the gearbox, the relationship between its natural frequency and external excitation frequency should be fully considered to avoid resonance phenomena through optimization design. For example, measures such as optimizing structural design and adding damping elements can be taken to reduce resonance risk.
Improve manufacturing accuracy: During the manufacturing process, process parameters should be strictly controlled to ensure the dimensional accuracy and internal quality of the gearbox, and reduce the occurrence of internal defects. At the same time, advanced testing methods are used to conduct quality inspections on the gearbox to ensure that the product meets the design requirements.
Strengthen maintenance and upkeep: During use, the gearbox should be regularly maintained and checked for loose connections and sufficient lubricating oil to ensure its normal operation and extend its service life. Meanwhile, it is important to avoid prolonged high load operation and frequent gear shifting to reduce the impact and vibration on the gearbox.
In summary, the aluminum die casting gearbox body may experience resonance during high-speed operation, but the specific occurrence and severity of resonance will be affected by various factors. By optimizing design, improving manufacturing accuracy, and strengthening maintenance measures, the risk of resonance can be effectively reduced and the service life of the gearbox can be extended.
